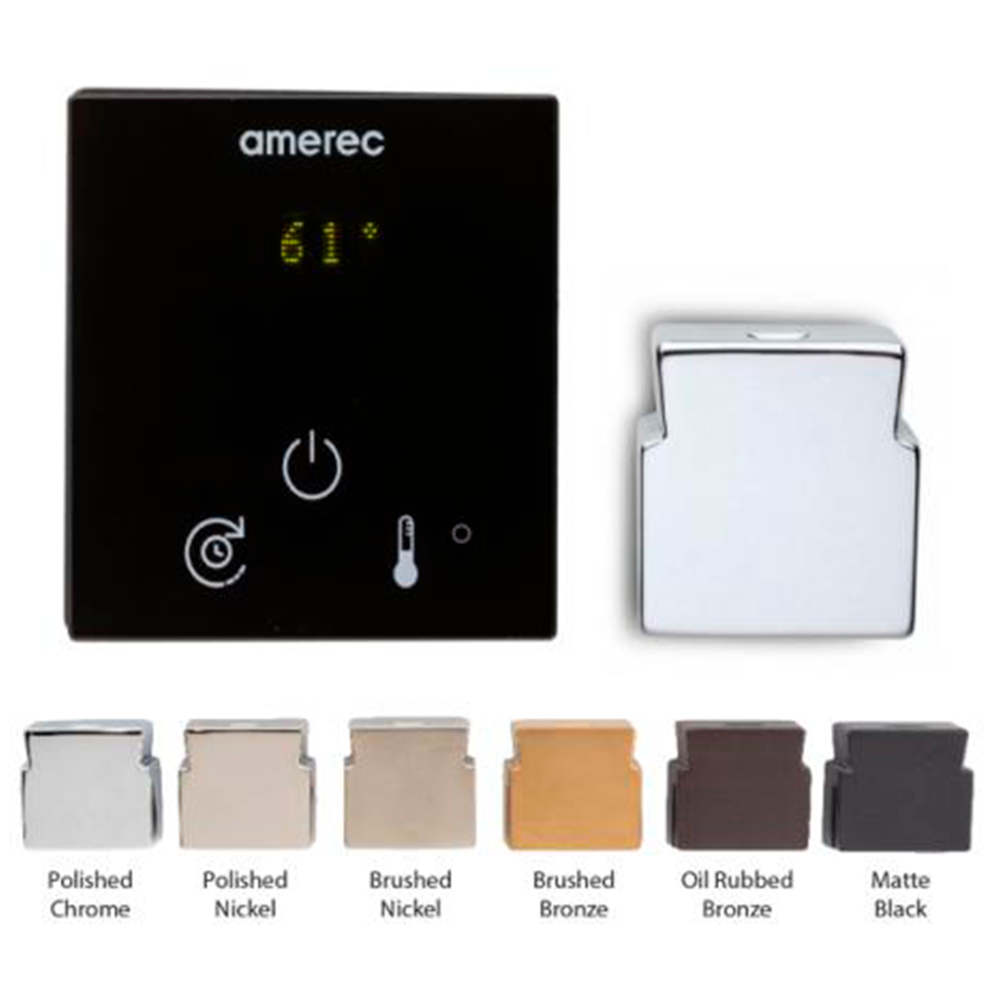

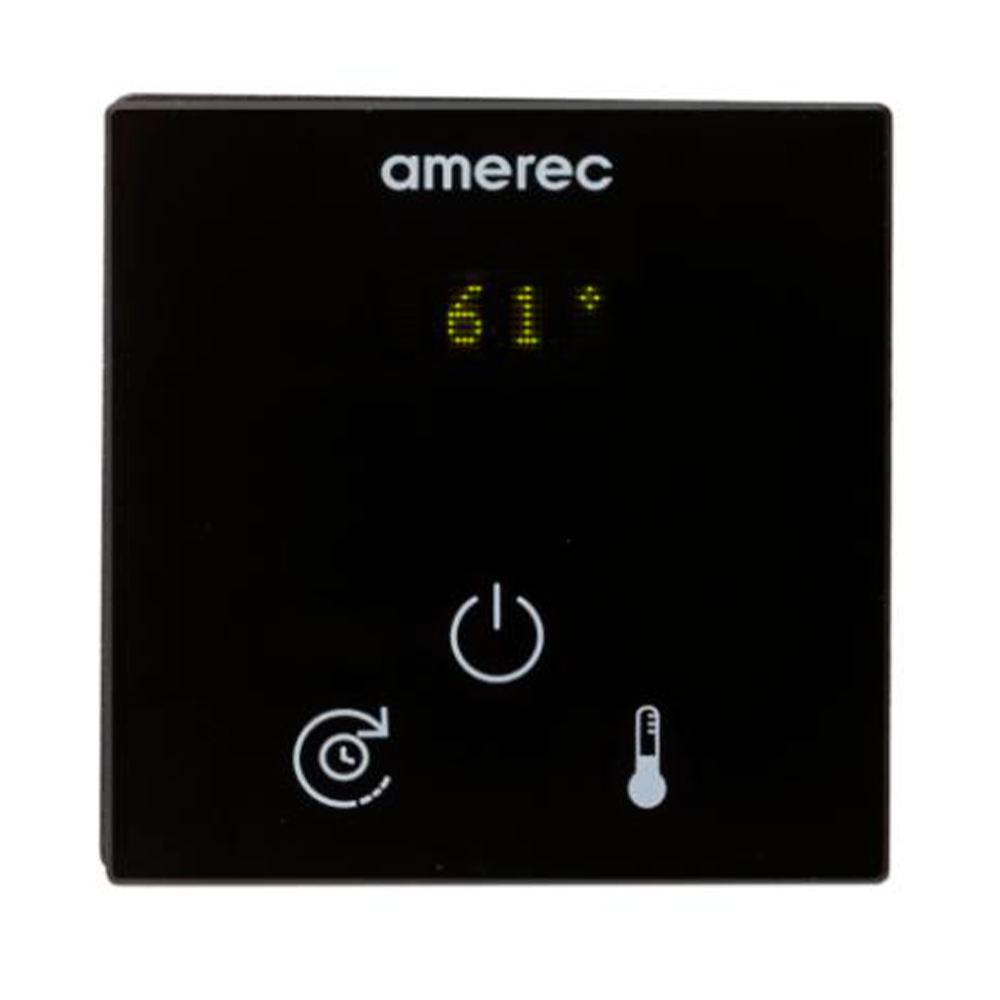

K3 Digital Touch Control Panel

The Amerec K3 steam shower generator control package works with Amerec AK series steam generators.

Features

• A modern update to Amerec's classic K60 control (backward compatible with the K60)
• Black glass touchscreen
• 3-button digital control with on/off, temperature, and time duration settings.

• Display alternates between ambient room temperature and time remaining.
• Features remote sensor and can be mounted inside or outside the steam room.
• Size: 2 5/8"w x 2 5/8"h x 5/8"d.

• The Control kit includes K3 control, sensor, cables, and ComfortFlo steam head.

Installation

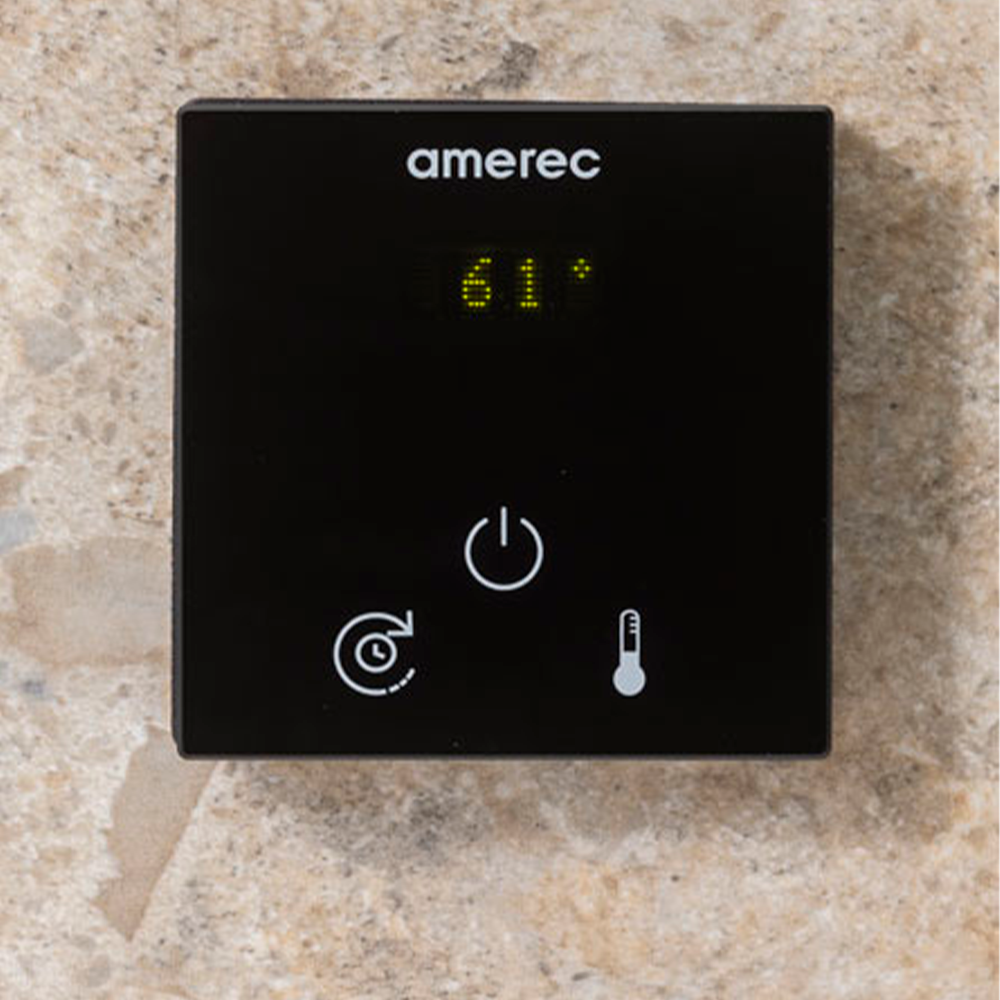

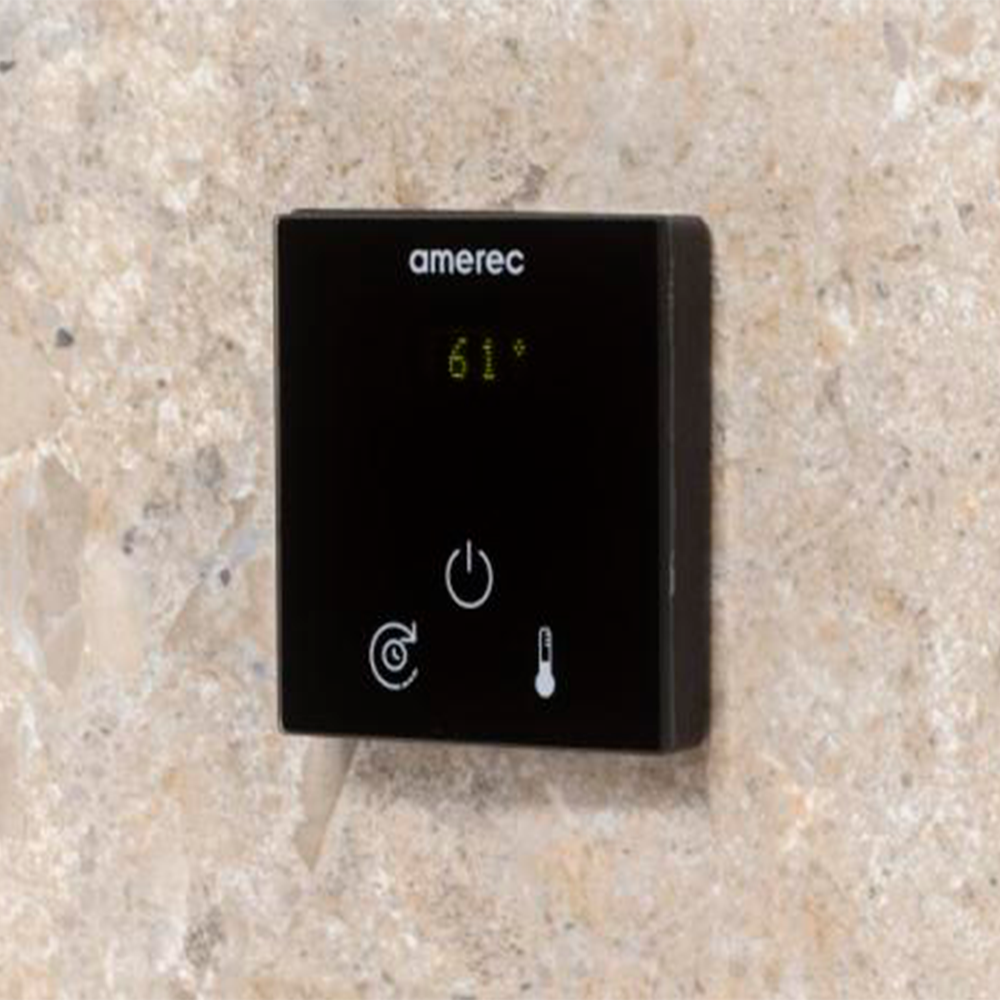

• Control mounts either inside or outside the steam room.
• Control housing to be mounted in 2 3/8” diameter holes in the wall.
• Temperature sensor mounts in 7/8” diameter hole located 6” down from 84” ceiling.
• Control and sensor cables connect to PCA inside the steam generator,
